BW Weighing Indicator – Trade and Non Trade
BW Weighing Indicator – Trade and Non Trade
Trade and Non-Trade Options Available
NMI Approval: #S520
BW Weighing Indicator – Features
- Easy to use front panel configuration
- Applications:
- Accumulation
- Check weighing
- Net/gross shift
- Weighing unit conversion
- Peak hold
- Animal weighing
- OIML approval from DANAK (approval no.0200-NAWI-04376)
- Keyboard lock function
- Optional RS-232 interface
- Optional analog output (0-10V/4-20mA)
- Optional setpoint output (HI/OK/LOW/BEEP)
- Optional bluetooth
BW Weighing Indicator – Specifications
| Display | 52mm digits LCD display with white LED backlight |
| Keys | 7 mechanical keys |
| Housing | ABS plastic |
| Maximum Divisions | 6,000e; 30,000d |
| Load cell excitation voltage | 5V/150mA |

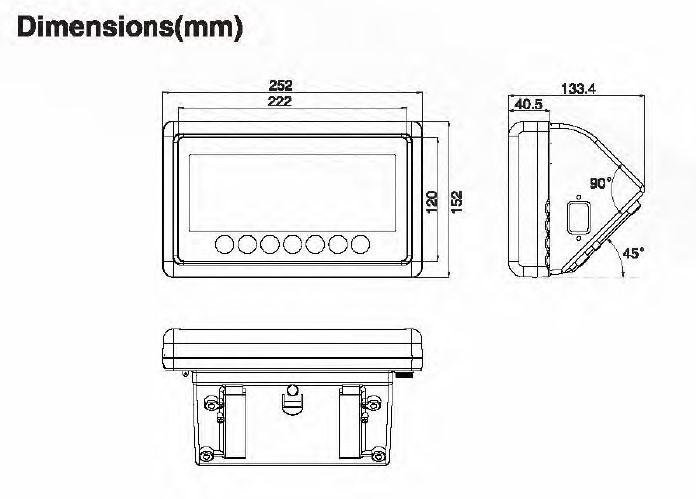

| Dimensions | W:152 x L:252 x H:133.4mm |
| Operate Temperature | -10℃~+40℃ |
| Power | Input: AC100~ 240V, 50/60 Hz, rechargeable battery 6V/4Ah.Output: DC12V 500mA |
| Optional | RS-232; Analogue output(0~10V/4~20mA); Set point output(HI/OK/LOW/BEEP) |
| Certificate | CE; OIML; NTEP |
Quotes?
For quotes for the BW Weighing Indicators, please select the GET A QUOTE tab above.
More information?
If you require more information regarding weighing indicators, feel free to get in contact by calling us on 1300 722 537 or use our online contact form to send us a message & we will be happy to try to help you find the right indicator for your requirements. And remember, we can also provide repair, calibration & certification services for your scales.
