NSW Stainless Steel Indicator – TRADE APPROVED
NSW Series Stainless Steel Platform Indicators
- TRADE APPROVED
- Checkweighing indicator
- Internal resolution: 1/600,000
- Large LCD display with backlight
- Application programs include:
- Accumulation
- checkweighing
- Net / gross shift
- Weighing unit conversion
- Peak hold
- Animal weighing
- Battery powered
- SST case
NSW Series Stainless Steel Platform Indicator Specifications
| Display | 52mm digits LCD display with white LED backlight |
| Keys | 7 mechanical keys |
| Housing | SST |
| Max.Divisions | 6,000e; 30,000d |
| Load cell excitation voltage | 5V/150mA |
| AC Update | ≤1/10 second |

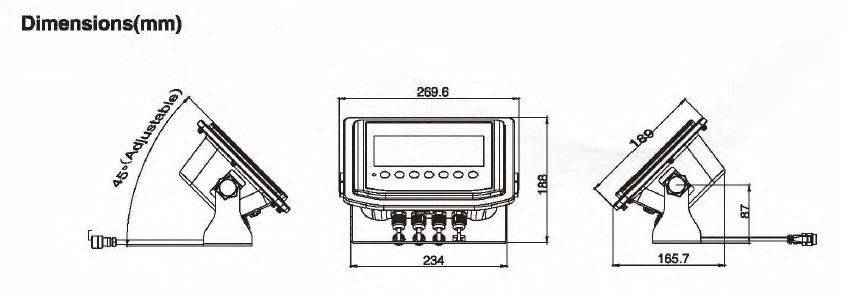

| Dimensions | W:189 x L:269.6 x H:188mm |
| Operate Temperature | -10℃~+40℃ |
| Power | Input: AC100~ 240V, 50/60 Hz, rechargeable battery 6V/4Ah. Output: DC12V 500mA, |
| Optional | RS-232; Analogue output(0~10V/4~20mA); Set point output(HI/OK/LOW/BEEP) |
| Certificate | CE; OIML |
Quotes?
For quotes for the NS Series Platform Indicators, please select the GET A QUOTE tab above.
More information?
If you require more information regarding Stainless Steel Indicators or Trade Approved Platform Indicators, feel free to get in contact by calling us on 1300 722 537 or use our online contact form to send us a message & we will be happy to try to help you find the right trade approved indicators for your requirements. And remember, we can also provide repair, calibration & certification services for your scales.
